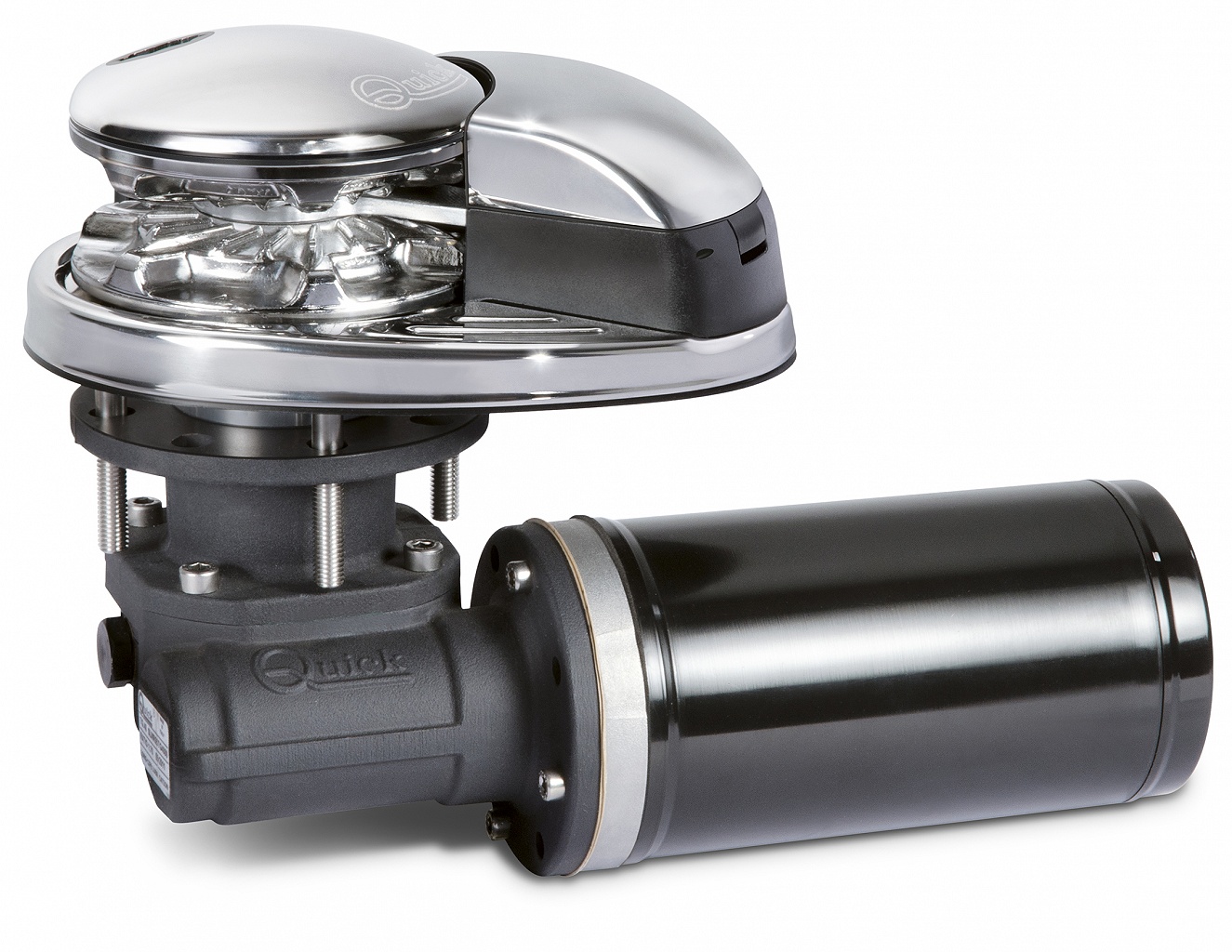

DP2 Vertical Windlass
| DP2 | 300 W 12V | 5 – 7.5 m | 16 – 25 ft |
| DP2 | 500 W 12/24V | 5 – 9 m | 16 – 30 ft |
| DP2 | 500 W HS 12V | 5 – 7.5 m | 16 – 25 ft |
| DP2 | 500 W HS 24V | 5 – 9 m | 16 – 30 ft |
| DP2 | 700 W 12/24 V | 7 – 12 m | 23 – 40 ft |
| DP | 1000 W 12/24V | 8 – 13 m | 26 – 43 ft |
The indication may vary according to the boat type and the anchor-rode type.
Description
The DP2 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| GYPSY | 6 mm | 7 mm – 1/4″ | 8 mm | 5/16″ | ||||||
| CHAIN | 6 mm | 6 mm | 7 mm | 7 mm | 1/4″ | 1/4″ | 8 mm | 8 mm | 5/16″ | 5/16″ |
| DIN 766 | ISO | DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | BBB | G4 | |
| ROPE | 1/2″ (12,7 mm) | |||||||||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.
Supplied accessories standard
| MODELS | T6415-12 | T6415-24 |
| 300 W | 12 V | |
| 500 W | 12 V | 24 V |
| 500 W HiSpeed | 12 V | 24 V |
